Typology
Long run conductive cable with 15 factory attached lamp holders.
Cable type: H05RR-F 300/500 V.
Features
Two different models: with lamp holder on the cable or with pendant.
Lampholders are fitted with IP44 protection rings.
Catenary is suitable for non-permanent outdoor installations.
This version can be can be linked in series (daisy chain connection).
Installation
Catenaria with 15 lamp holders can be connected consecutively up to a maximum length of 45 metres.
Applications
Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc.
Suggested lamps: PING BALL, color GLS or Stargazer lamp.
Also available in white colour, perfect for reception areas, weddings, etc..
Notes
Only Catenaria with 15 lamp holders can be connected in serie with the IP44 Schuko plug and socket on the sides.
Both are IP44.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905856144
Number of pieces multiple pack
4
Barcode multiple pack
8011905856151
Product sheet
Tender text
Extended
Compact

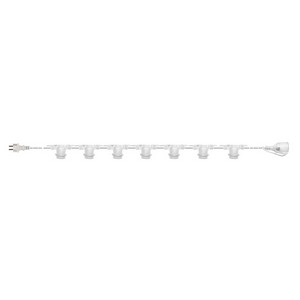

CLE2715-SWH - CATENARIA IN SERIES VERSION
Typology
Long run conductive cable with 15 factory attached lamp holders.
Cable type: H05RR-F 300/500 V.
Features
Two different models: with lamp holder on the cable or with pendant.
Lampholders are fitted with IP44 protection rings.
Catenary is suitable for non-permanent outdoor installations.
This version can be can be linked in series (daisy chain connection).
Installation
Catenaria with 15 lamp holders can be connected consecutively up to a maximum length of 45 metres.
Applications
Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc.
Suggested lamps: PING BALL, color GLS or Stargazer lamp.
Also available in white colour, perfect for reception areas, weddings, etc..
Notes
Only Catenaria with 15 lamp holders can be connected in serie with the IP44 Schuko plug and socket on the sides.
Both are IP44.
Characteristic data
Input: 220-240 Vac
Base: E27
IP: 44
LED Warranty: G2
Color: White
Dimensional characteristics
Dimensiones
L: 15000 mm
Electrical characteristics
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 4000 gr
Barcode single item: 8011905856144
Number of pieces multiple pack: 4
Barcode multiple pack: 8011905856151
Minimum order quantity: 1
Minimum packaging: 1 / 4
CLE2715-SWH - CATENARIA IN SERIES VERSION
Typology: Long run conductive cable with 15 factory attached lamp holders. Cable type: H05RR-F 300/500 V. Features: Two different models: with lamp holder on the cable or with pendant. Lampholders are fitted with IP44 protection rings. Catenary is suitable for non-permanent outdoor installations. This version can be can be linked in series (daisy chain connection). Installation: Catenaria with 15 lamp holders can be connected consecutively up to a maximum length of 45 metres. Applications: Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc. Suggested lamps: PING BALL, color GLS or Stargazer lamp. Also available in white colour, perfect for reception areas, weddings, etc.. Notes: Only Catenaria with 15 lamp holders can be connected in serie with the IP44 Schuko plug and socket on the sides. Both are IP44. Characteristic data - Input: 220-240 Vac; Base: E27; IP: 44; LED Warranty: G2; Color: White. Dimensional characteristics - Dimensiones; L: 15000 mm. Electrical characteristics - Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 4000 gr; Barcode single item: 8011905856144; Number of pieces multiple pack: 4; Barcode multiple pack: 8011905856151; Minimum order quantity: 1; Minimum packaging: 1 / 4.
