Typology

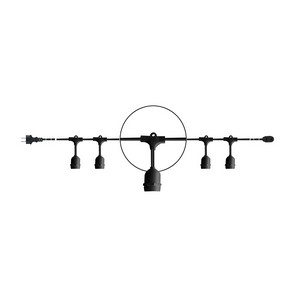

Long run conductive cable with 24 factory attached lamp holders.
Cable type: H05RR-F 300/500 V.
Features
Two different models: with lamp holder on the cable or with pendant (only 120V).
Lampholders are fitted with IP44 protection rings.
Catenary is suitable for non-permanent outdoor installations.
Applications
Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc.
Suggested lamps: PING BALL, color GLS or Stargazer lamp.
Notes
Factory prepped outdoor IP44 Schuko socket for Europe, US plug or end prep wiring options for the USA.
Cannot be connected in series.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905843830
Number of pieces multiple pack
4
Barcode multiple pack
8011905847296
Product sheet
Tender text
Extended
Compact
CLE2624 - CATENARIA
Typology
Long run conductive cable with 24 factory attached lamp holders.
Cable type: H05RR-F 300/500 V.
Features
Two different models: with lamp holder on the cable or with pendant (only 120V).
Lampholders are fitted with IP44 protection rings.
Catenary is suitable for non-permanent outdoor installations.
Applications
Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc.
Suggested lamps: PING BALL, color GLS or Stargazer lamp.
Notes
Factory prepped outdoor IP44 Schuko socket for Europe, US plug or end prep wiring options for the USA.
Cannot be connected in series.
Characteristic data
Input: 120 Vac
Base: E26
IP: 44
LED Warranty: G2
Color: Black

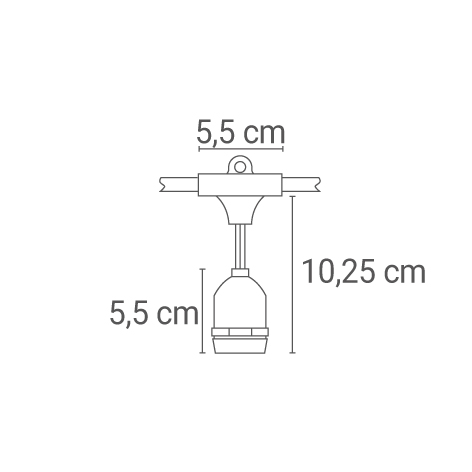

Dimensional characteristics
Dimensiones
L: 16000 mm
Electrical characteristics
Input voltage: 120 Vac
Frequency: 60 Hz
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 4000 gr
Barcode single item: 8011905843830
Number of pieces multiple pack: 4
Barcode multiple pack: 8011905847296
CLE2624 - CATENARIA
Typology: Long run conductive cable with 24 factory attached lamp holders. Cable type: H05RR-F 300/500 V. Features: Two different models: with lamp holder on the cable or with pendant (only 120V). Lampholders are fitted with IP44 protection rings. Catenary is suitable for non-permanent outdoor installations. Applications: Widely used for festoons indoor and outdoor garden lighting decoration, patio umbrella lighting, etc. Suggested lamps: PING BALL, color GLS or Stargazer lamp. Notes: Factory prepped outdoor IP44 Schuko socket for Europe, US plug or end prep wiring options for the USA. Cannot be connected in series. Characteristic data - Input: 120 Vac; Base: E26; IP: 44; LED Warranty: G2; Color: Black. Dimensional characteristics - Dimensiones; L: 16000 mm. Electrical characteristics - Input voltage: 120 Vac; Frequency: 60 Hz; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 4000 gr; Barcode single item: 8011905843830; Number of pieces multiple pack: 4; Barcode multiple pack: 8011905847296.
