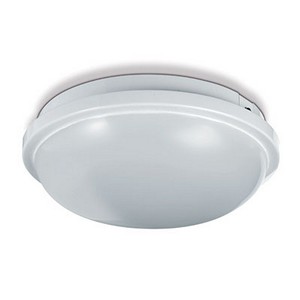

BH20
BULKHEAD T&O IP65 - ROUND
Typology
IP65 ceiling/wall light with new generation LED sources using SMD technology.
Features
Typically used for diffused lighting for both indoor and outdoor or wet environments (IP65).
Substitutes ceiling fixtures with fluorescent lamps to give immediate lighting without flickering and increased duration.
Installation
The bracket attaches to the wall or the ceiling and the fixture is screwed onto the bracket.
Material
Shockproof plastic IK10 body and screen.
Driver on board not accessible.
Notes
Do not use with dimmers.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
20 kWh/1000h
Operating temperature
-25°C / +35°C

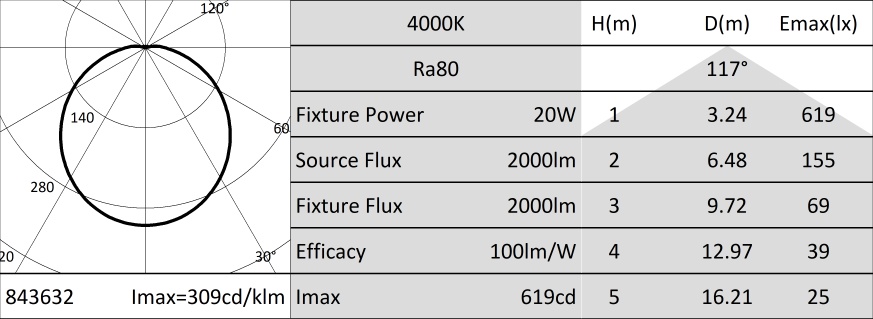

Photometry
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905843632
Number of pieces multiple pack
10
Barcode multiple pack
8011905788919
Product sheet
Tender text
Extended
Compact
BH20 - BULKHEAD T&O IP65 - ROUND
Typology
IP65 ceiling/wall light with new generation LED sources using SMD technology.
Features
Typically used for diffused lighting for both indoor and outdoor or wet environments (IP65).
Substitutes ceiling fixtures with fluorescent lamps to give immediate lighting without flickering and increased duration.
Installation
The bracket attaches to the wall or the ceiling and the fixture is screwed onto the bracket.
Material
Shockproof plastic IK10 body and screen.
Driver on board not accessible.
Notes
Do not use with dimmers.
Characteristic data
Power: 20 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: Wire
IP: 65
Flux: 2000 lm
PF: 0,5
Tc: 4000 K
Ra: >80
LED Warranty: G3
Axis: 560 cd
IK: IK10
RG: RG0
Color: White
Dimensional characteristics
Dimensiones
ø: 220 mm
H: 73 mm
Lighting and photometric features
Beam opening: 120°
Flux: 2000 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 25000 h
LED lifespan: L70B30
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 20 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,5
Input current: 0.09 A
Weighted energy consumption: 20 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 420 gr
Barcode single item: 8011905843632
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905788919
Minimum order quantity: 10
Minimum packaging: 10 / 10
Other Infotech
Reflector: Yes
BH20 - BULKHEAD T&O IP65 - ROUND
Typology: IP65 ceiling/wall light with new generation LED sources using SMD technology. Features: Typically used for diffused lighting for both indoor and outdoor or wet environments (IP65). Substitutes ceiling fixtures with fluorescent lamps to give immediate lighting without flickering and increased duration. Installation: The bracket attaches to the wall or the ceiling and the fixture is screwed onto the bracket. Material: Shockproof plastic IK10 body and screen. Driver on board not accessible. Notes: Do not use with dimmers. Characteristic data - Power: 20 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: Wire; IP: 65; Flux: 2000 lm; PF: 0,5; Tc: 4000 K; Ra: >80; LED Warranty: G3; Axis: 560 cd; IK: IK10; RG: RG0; Color: White. Dimensional characteristics - Dimensiones; ø: 220 mm; H: 73 mm. Lighting and photometric features - Beam opening: 120°; Flux: 2000 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 25000 h; LED lifespan: L70B30; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 20 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,5; Input current: 0.09 A; Weighted energy consumption: 20 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 420 gr; Barcode single item: 8011905843632; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905788919; Minimum order quantity: 10; Minimum packaging: 10 / 10. Other Infotech - Reflector: Yes.
