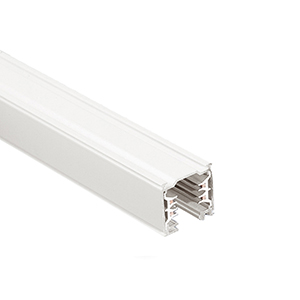

B40-1SW
NewTrack for surface or suspension mounting
Typology
3-phase rail in extruded aluminium painted black or white.
Grey unpainted anodised aluminium finish available on request.
Features
Ease of use: always observe the earthing line.
Extensive accessories options to create ever different and surprising track systems: flexible curves, T, L and X elements.
Allows for 3 differentiated switching.
Installation
Surface or suspension installation.
Power supply
Frequency: 50 Hz.
Current and voltage rating: L1/L2/L3/N/ground 16A/250V.
Load on phase: 3.6kVA.
On the 3 phases: 3X 3.6kVA.
Characteristic data
Dimensional characteristics
Logistics data
Product sheet
Tender text
Extended
Compact
B40-1SW - Track for surface or suspension mounting
Typology
3-phase rail in extruded aluminium painted black or white.
Grey unpainted anodised aluminium finish available on request.
Features
Ease of use: always observe the earthing line.
Extensive accessories options to create ever different and surprising track systems: flexible curves, T, L and X elements.
Allows for 3 differentiated switching.
Installation
Surface or suspension installation.
Power supply
Frequency: 50 Hz.
Current and voltage rating: L1/L2/L3/N/ground 16A/250V.
Load on phase: 3.6kVA.
On the 3 phases: 3X 3.6kVA.
Characteristic data
Color: White
Dimensional characteristics
Dimensiones
L: 1030 mm
L1: 36 mm
H: 33 mm
Logistics data
Item net weight: 1100 gr
Minimum order quantity: 1
Minimum packaging: 1 / 1
B40-1SW - Track for surface or suspension mounting
Typology: 3-phase rail in extruded aluminium painted black or white. Grey unpainted anodised aluminium finish available on request. Features: Ease of use: always observe the earthing line. Extensive accessories options to create ever different and surprising track systems: flexible curves, T, L and X elements. Allows for 3 differentiated switching. Installation: Surface or suspension installation. Power supply: Frequency: 50 Hz. Current and voltage rating: L1/L2/L3/N/ground 16A/250V. Load on phase: 3.6kVA. On the 3 phases: 3X 3.6kVA. Characteristic data - Color: White. Dimensional characteristics - Dimensiones; L: 1030 mm; L1: 36 mm; H: 33 mm. Logistics data - Item net weight: 1100 gr; Minimum order quantity: 1; Minimum packaging: 1 / 1.
