Typology
New generation LED lamps with COB technology.
Features
Super spot lens for very concentrated, beams.
High efficiency dichroic effect faceted PMMA refractor for concentrated, clean beams.
Material
Thermally conductive compartment for housing the electronic components: optimization of heat dissipation and greater safety for the user.
Notes
Can be used with a dimmer, see tables.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
2700 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
8 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
82

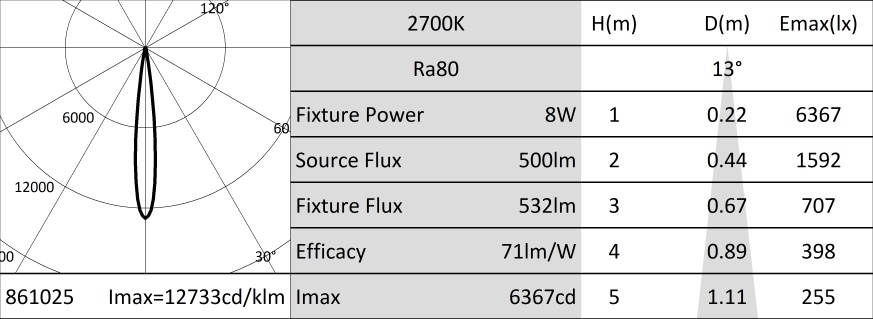

Photometry
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905861025
Number of pieces multiple pack
10
Barcode multiple pack
8011905861797
Product sheet
Tender text
Extended
Compact
272702-D - XSPOT
Typology
New generation LED lamps with COB technology.
Features
Super spot lens for very concentrated, beams.
High efficiency dichroic effect faceted PMMA refractor for concentrated, clean beams.
Material
Thermally conductive compartment for housing the electronic components: optimization of heat dissipation and greater safety for the user.
Notes
Can be used with a dimmer, see tables.
Characteristic data
Power: 7.5 W
Beam: 10°
Dimmable: Yes
Input: 220-240 Vac
Base: GU10
IP: 20
Flux: 600 lm
PF: 0,57
Tc: 2700 K
Ra: >80
LED Warranty: G2
Axis: 6360 cd
Dimensional characteristics
Dimensiones
ø: 50 mm
H: 58 mm
Lighting and photometric features
Beam opening: 10°
Flux: 600 lm
CCT nominal colour temperature: 2700 K
Colour of the light: Warm light
Colour rendering index: >80
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 7.5 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: Yes
Power factor (PF): 0,57
Input current: 0.05 A
Weighted energy consumption: 8 kWh/1000h
Energy efficiency class: G
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 82
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 50 gr
Barcode single item: 8011905861025
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905861797
Minimum order quantity: 10
Minimum packaging: 10 / 10
Other Infotech
Reflector: Yes
272702-D - XSPOT
Typology: New generation LED lamps with COB technology. Features: Super spot lens for very concentrated, beams. High efficiency dichroic effect faceted PMMA refractor for concentrated, clean beams. Material: Thermally conductive compartment for housing the electronic components: optimization of heat dissipation and greater safety for the user. Notes: Can be used with a dimmer, see tables. Characteristic data - Power: 7.5 W; Beam: 10°; Dimmable: Yes; Input: 220-240 Vac; Base: GU10; IP: 20; Flux: 600 lm; PF: 0,57; Tc: 2700 K; Ra: >80; LED Warranty: G2; Axis: 6360 cd. Dimensional characteristics - Dimensiones; ø: 50 mm; H: 58 mm. Lighting and photometric features - Beam opening: 10°; Flux: 600 lm; CCT nominal colour temperature: 2700 K; Colour of the light: Warm light; Colour rendering index: >80; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 7.5 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: Yes; Power factor (PF): 0,57; Input current: 0.05 A; Weighted energy consumption: 8 kWh/1000h; Energy efficiency class: G; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 82; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 50 gr; Barcode single item: 8011905861025; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905861797; Minimum order quantity: 10; Minimum packaging: 10 / 10. Other Infotech - Reflector: Yes.
