Typology
Discharge lamps.
Features
Product reliability. This is what the entire range of Duralamp discharge lamps has in common.
Used in technical and professional installations where relamping is often difficult, discharge lamps must be lamps you can depend upon.
Notes
The HYPERCOLOR range with ceramic burners: excellent control of colour uniformity, colour rendering and colour stability over time.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
2000 K
Colour rendering index
>20
Luminous Flux Maintenance at 2000h
94
Luminous Flux Maintenance at 4000h
92
Luminous Flux Maintenance at 6000h
91
Luminous Flux Maintenance at 8000h
90
Luminous Flux Maintenance at 12000h
90
Luminous Flux Maintenance at 16000h
90
Luminous Flux Maintenance at 20000h
88
Lamp survival factor at 2000h
99
Lamp survival factor at 4000h
99
Lamp survival factor at 6000h
98
Lamp survival factor at 8000h
96
Lamp survival factor at 10000h
93
Lamp survival factor at 12000h
94
Lamp survival factor at 15000h
91
Lamp survival factor at 16000h
90
Lamp survival factor at 20000h
80
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62035:2016 (+A1:2020)
Logistics data
Barcode single item
8011905042301
Number of pieces multiple pack
12
Barcode multiple pack
8011905734022
Product sheet
Tender text
Extended
Compact
1DSD150E - HDS - HIGH PRESSURE SODIUM - ELLIPTICAL
Typology
Discharge lamps.
Features
Product reliability. This is what the entire range of Duralamp discharge lamps has in common.
Used in technical and professional installations where relamping is often difficult, discharge lamps must be lamps you can depend upon.
Notes
The HYPERCOLOR range with ceramic burners: excellent control of colour uniformity, colour rendering and colour stability over time.
Characteristic data
Power: 150 W
Dimmable: No
Input: 100±15 Vac
Base: E40
IP: 20
Flux: 16300 lm
Tc: 2000 K
Ra: >20

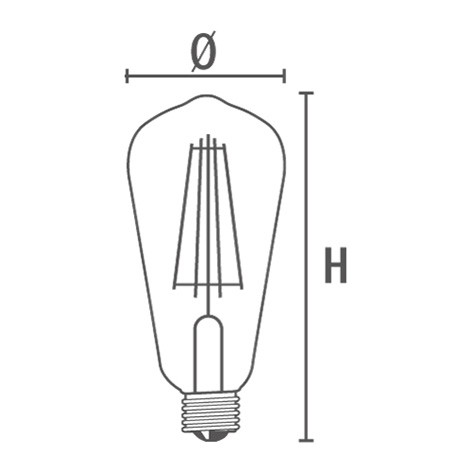

Dimensional characteristics
Dimensiones
ø: 90 mm
H: 211 mm
Lighting and photometric features
Flux: 16300 lm
CCT nominal colour temperature: 2000 K
Colour rendering index: >20
Lifespan: 24000 h
Mercury: 16,0 mg
Luminous Flux Maintenance at 2000h: 94
Luminous Flux Maintenance at 4000h: 92
Luminous Flux Maintenance at 6000h: 91
Luminous Flux Maintenance at 8000h: 90
Luminous Flux Maintenance at 12000h: 90
Luminous Flux Maintenance at 16000h: 90
Luminous Flux Maintenance at 20000h: 88
Lamp survival factor at 2000h: 99
Lamp survival factor at 4000h: 99
Lamp survival factor at 6000h: 98
Lamp survival factor at 8000h: 96
Lamp survival factor at 10000h: 93
Lamp survival factor at 12000h: 94
Lamp survival factor at 15000h: 91
Lamp survival factor at 16000h: 90
Lamp survival factor at 20000h: 80
Electrical characteristics
Rated power: 150 W
Input voltage: 100±15 Vac
Frequency: 50 Hz
Dimmable: No
Input current: 1.8 A
Energy efficiency class: F
Operating temperature: -15°C / +35°C
Operating position: 360°
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62035:2016 (+A1:2020)
Logistics data
Item net weight: 170 gr
Barcode single item: 8011905042301
Number of pieces multiple pack: 12
Barcode multiple pack: 8011905734022
Minimum order quantity: 12
Minimum packaging: 12 / 12
1DSD150E - HDS - HIGH PRESSURE SODIUM - ELLIPTICAL
Typology: Discharge lamps. Features: Product reliability. This is what the entire range of Duralamp discharge lamps has in common. Used in technical and professional installations where relamping is often difficult, discharge lamps must be lamps you can depend upon. Notes: The HYPERCOLOR range with ceramic burners: excellent control of colour uniformity, colour rendering and colour stability over time. Characteristic data - Power: 150 W; Dimmable: No; Input: 100±15 Vac; Base: E40; IP: 20; Flux: 16300 lm; Tc: 2000 K; Ra: >20. Dimensional characteristics - Dimensiones; ø: 90 mm; H: 211 mm. Lighting and photometric features - Flux: 16300 lm; CCT nominal colour temperature: 2000 K; Colour rendering index: >20; Lifespan: 24000 h; Mercury: 16,0 mg; Luminous Flux Maintenance at 2000h: 94; Luminous Flux Maintenance at 4000h: 92; Luminous Flux Maintenance at 6000h: 91; Luminous Flux Maintenance at 8000h: 90; Luminous Flux Maintenance at 12000h: 90; Luminous Flux Maintenance at 16000h: 90; Luminous Flux Maintenance at 20000h: 88; Lamp survival factor at 2000h: 99; Lamp survival factor at 4000h: 99; Lamp survival factor at 6000h: 98; Lamp survival factor at 8000h: 96; Lamp survival factor at 10000h: 93; Lamp survival factor at 12000h: 94; Lamp survival factor at 15000h: 91; Lamp survival factor at 16000h: 90; Lamp survival factor at 20000h: 80. Electrical characteristics - Rated power: 150 W; Input voltage: 100±15 Vac; Frequency: 50 Hz; Dimmable: No; Input current: 1.8 A; Energy efficiency class: F; Operating temperature: -15°C / +35°C; Operating position: 360°. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 62035:2016 (+A1:2020). Logistics data - Item net weight: 170 gr; Barcode single item: 8011905042301; Number of pieces multiple pack: 12; Barcode multiple pack: 8011905734022; Minimum order quantity: 12; Minimum packaging: 12 / 12.
