Typology
LED PAR56 for swimming pools, fountains and SUBMERSIBLE applications ONLY.
Features
Max depth underwater: 1 m max.
Recommended minimum depth 45 cm.
Can be used as a retrofit to traditional PAR56.
Material
Code 12PAR56CW18: plastic body and sealed ring with no visible screws.
Material resistant to chlorine and swimming pool additives.
Applications
For underwater installations inside suitable fittings.
Power supply
Operating Voltage: 12V DC or 12V AC 50/60Hz (electromagnetic transformer).
M4 screw terminal.
Notes
For underwater installations inside suitable fittings.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
18 kWh/1000h
Operating temperature
-25°C / +35°C
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014
Logistics data
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact

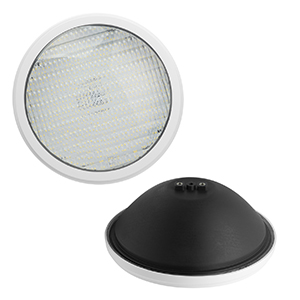

12PAR56CW18 - PAR56 LED WHITE LIGHT
Typology
LED PAR56 for swimming pools, fountains and SUBMERSIBLE applications ONLY.
Features
Max depth underwater: 1 m max.
Recommended minimum depth 45 cm.
Can be used as a retrofit to traditional PAR56.
Material
Code 12PAR56CW18: plastic body and sealed ring with no visible screws.
Material resistant to chlorine and swimming pool additives.
Applications
For underwater installations inside suitable fittings.
Power supply
Operating Voltage: 12V DC or 12V AC 50/60Hz (electromagnetic transformer).
M4 screw terminal.
Notes
For underwater installations inside suitable fittings.
Characteristic data
Power: 18 W
Beam: 120°
Dimmable: No
Input: 12 Vac/dc
Base: Screw
IP: 68
Flux: 1500 lm
PF: 0,8
Tc: 6000 K
LED Warranty: G3
Axis: 600 cd
Dimensional characteristics
Dimensiones
ø: 177 mm
H: 93 mm
Lighting and photometric features
Beam opening: 120°
Flux: 1500 lm
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Lifespan: 25000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 18 W
Input voltage: 12 Vac/dc
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,8
Input current: 2.2 A
Weighted energy consumption: 18 kWh/1000h
Energy efficiency class: F
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014
Logistics data
Item net weight: 380 gr
Number of pieces multiple pack: 20
Minimum order quantity: 1
Minimum packaging: 1 / 20
Other Infotech
Reflector: Yes
12PAR56CW18 - PAR56 LED WHITE LIGHT
Typology: LED PAR56 for swimming pools, fountains and SUBMERSIBLE applications ONLY. Features: Max depth underwater: 1 m max. Recommended minimum depth 45 cm. Can be used as a retrofit to traditional PAR56. Material: Code 12PAR56CW18: plastic body and sealed ring with no visible screws. Material resistant to chlorine and swimming pool additives. Applications: For underwater installations inside suitable fittings. Power supply: Operating Voltage: 12V DC or 12V AC 50/60Hz (electromagnetic transformer). M4 screw terminal. Notes: For underwater installations inside suitable fittings. Characteristic data - Power: 18 W; Beam: 120°; Dimmable: No; Input: 12 Vac/dc; Base: Screw; IP: 68; Flux: 1500 lm; PF: 0,8; Tc: 6000 K; LED Warranty: G3; Axis: 600 cd. Dimensional characteristics - Dimensiones; ø: 177 mm; H: 93 mm. Lighting and photometric features - Beam opening: 120°; Flux: 1500 lm; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Lifespan: 25000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 18 W; Input voltage: 12 Vac/dc; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,8; Input current: 2.2 A; Weighted energy consumption: 18 kWh/1000h; Energy efficiency class: F; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 62838:2016 (+EC:2018); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI 34-141:2014. Logistics data - Item net weight: 380 gr; Number of pieces multiple pack: 20; Minimum order quantity: 1; Minimum packaging: 1 / 20. Other Infotech - Reflector: Yes.
