07URGB2414EXUHD
DURASTRIP ULTRA HD RGB IP65
The most powerful RGB strip in the range, 240 LED/m, 3 in 1 3535RGB.
This new generation chip is very compact: this allows for optimization of heat and increases the lifespan ensuring colour stability over time.
From a lighting point of view it provides excellent performance in terms of luminous efficiency: ULTRA RGB contributes to meeting the needs of installations that require a decorative impact and applications that demand a strong light supply with high emission uniformity in the best way.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DMX with ZKCDMXWFF, ZKCDMX-RFF controller
Analogue and digital domotic control systems
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
Or custom products cut to specific lengths see page 11, 322.
LED
LED 3535RGB
R=615-625nm; G=520-530nm; B=465-475nm;
240 LED/m
70W (14W/m)
24VDC
Lifetime: >50,000h
Warranty: 5 years
Colour of the light
RGB
Connections
Complete with IP68 / 68 Male/Female wire on 2 sides, length 15 cm.
Maximum connection length 5 m. Max 4A.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Dimensional characteristics
Cutting pitch
25 mm
LED pitch
4.17 mm
Lighting and photometric features
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

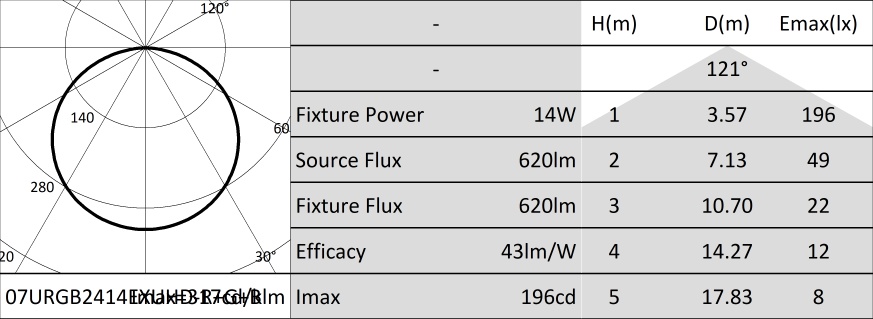

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905953058
Product sheet
Tender text
Extended
Compact
07URGB2414EXUHD - DURASTRIP ULTRA HD RGB IP65
The most powerful RGB strip in the range, 240 LED/m, 3 in 1 3535RGB.
This new generation chip is very compact: this allows for optimization of heat and increases the lifespan ensuring colour stability over time.
From a lighting point of view it provides excellent performance in terms of luminous efficiency: ULTRA RGB contributes to meeting the needs of installations that require a decorative impact and applications that demand a strong light supply with high emission uniformity in the best way.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DMX with ZKCDMXWFF, ZKCDMX-RFF controller
Analogue and digital domotic control systems
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
Or custom products cut to specific lengths see page 11, 322.
LED
LED 3535RGB
R=615-625nm; G=520-530nm; B=465-475nm;
240 LED/m
70W (14W/m)
24VDC
Lifetime: >50,000h
Warranty: 5 years
Colour of the light
RGB
Connections
Complete with IP68 / 68 Male/Female wire on 2 sides, length 15 cm.
Maximum connection length 5 m. Max 4A.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Power: 70 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Connector
IP: 65
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 14 mm
H: 4 mm
Paso de corte
Cutting pitch: 25 mm
LED pitch: 4.17 mm
Lighting and photometric features
Beam opening: 120°
Colour of the light: RGB
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 70 W
Input voltage: 24 Vdc
Dimmable: Yes
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item: 8011905953058
07URGB2414EXUHD - DURASTRIP ULTRA HD RGB IP65
The most powerful RGB strip in the range, 240 LED/m, 3 in 1 3535RGB. This new generation chip is very compact: this allows for optimization of heat and increases the lifespan ensuring colour stability over time. From a lighting point of view it provides excellent performance in terms of luminous efficiency: ULTRA RGB contributes to meeting the needs of installations that require a decorative impact and applications that demand a strong light supply with high emission uniformity in the best way. Installation: Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Usage information: Dimmable 0-100% Flicker Free DMX with ZKCDMXWFF, ZKCDMX-RFF controller Analogue and digital domotic control systems CASAMBI compatible Packaging: Packaged in 5 meters reels. Or custom products cut to specific lengths see page 11, 322. LED: LED 3535RGB R=615-625nm; G=520-530nm; B=465-475nm; 240 LED/m 70W (14W/m) 24VDC Lifetime: >50,000h Warranty: 5 years Colour of the light: RGB Connections: Complete with IP68 / 68 Male/Female wire on 2 sides, length 15 cm. Maximum connection length 5 m. Max 4A. Strips can be cut to size by following the cutting indications printed on the strips. Characteristic data - Power: 70 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Connector; IP: 65; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 14 mm; H: 4 mm; Paso de corte; Cutting pitch: 25 mm; LED pitch: 4.17 mm. Lighting and photometric features - Beam opening: 120°; Colour of the light: RGB; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 70 W; Input voltage: 24 Vdc; Dimmable: Yes; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Barcode single item: 8011905953058.
