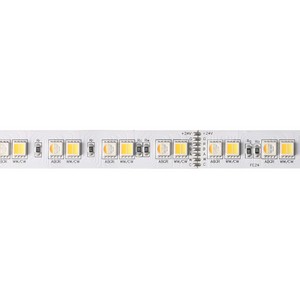

07UET2423IN
NewDURASTRIP EXTREME TUNABLE CCT IP20
Typology
24V Strip LED.
Features
This strip adds to the characteristics of the CCT, which varies the white from 3000K to 6500K, and the potential offered by an LED that encloses the Red Green and Blue spectra + a very warm amber colour (wonderful for the "ancient stone" effect).
DURASTRIP Extreme Tuneable gives the designer the freedom to choose previously unthinkable shades of light without using complex electronic equipment and create the most diverse and new, pleasant and amazing lighting scenes using just one strip.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Always use with aluminium profiles for heat dissipation.
Usage information
NOTE: 6 channels needed
Dimmable 0-100% Flicker Free
DMX
Analogue and digital domotic control systems
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of colour temperature in the whites + RGBA:
3000K - 6500K + RGB + AMBRA 1600K
Binning
ANSI/SDCM: 3 step.
Connections
IP20: terminals with free wires.
IP65: complete with a 15 cm long IP65/68 M/F cable on 2 sides.
Maximum connection length 5 m.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Dimensional characteristics

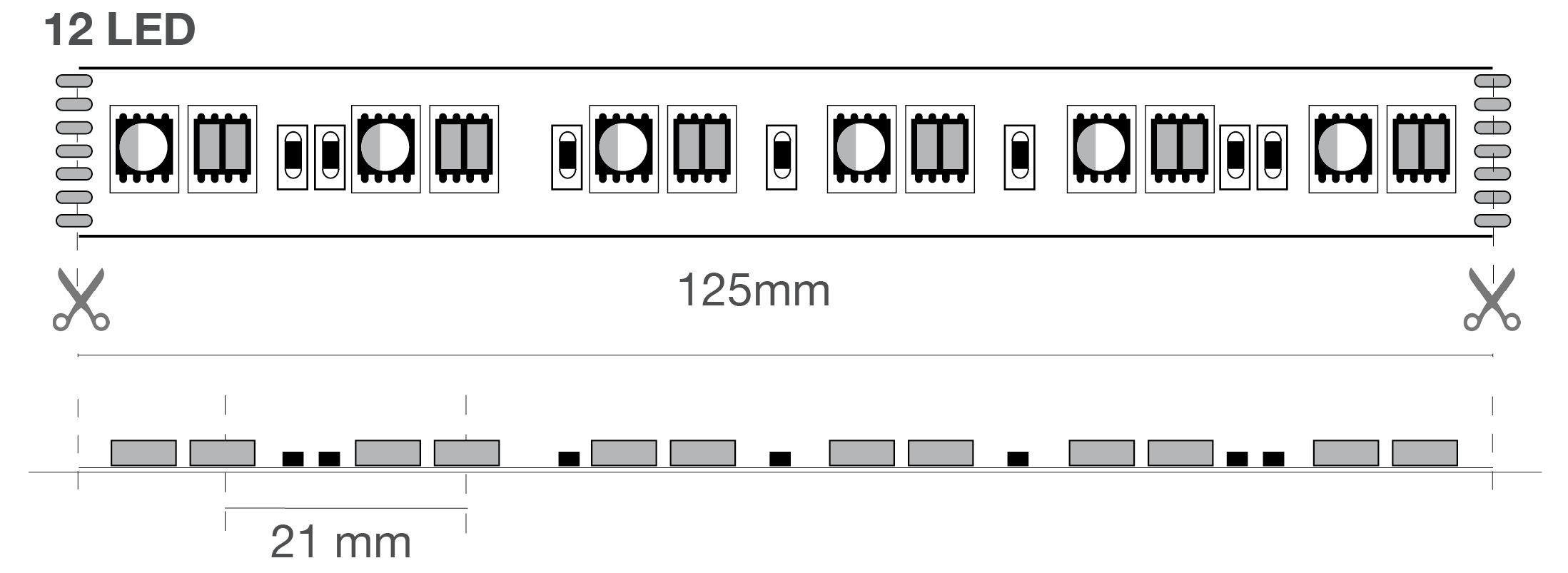

Cutting pitch
125 mm
LED pitch
21 mm
Lighting and photometric features
Nominal flux per mt
1250 lm/m
CCT nominal colour temperature
3000-6500K + RGBA
Colour of the light
3000-6500+RGBA
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

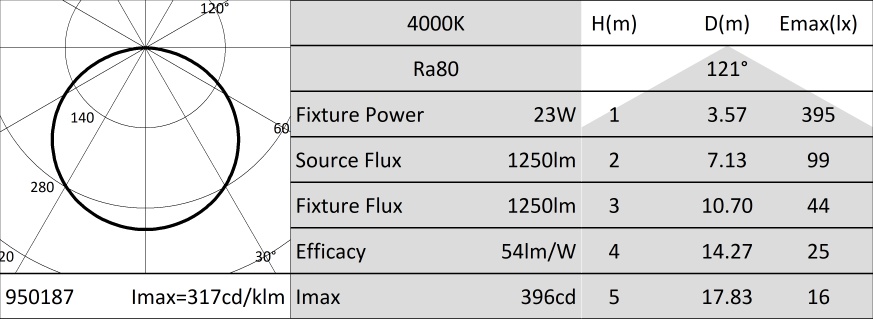

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905950187
Number of pieces multiple pack
20
Barcode multiple pack
8011905952020
Product sheet
Tender text
Extended
Compact
07UET2423IN - DURASTRIP EXTREME TUNABLE CCT IP20
Typology
24V Strip LED.
Features
This strip adds to the characteristics of the CCT, which varies the white from 3000K to 6500K, and the potential offered by an LED that encloses the Red Green and Blue spectra + a very warm amber colour (wonderful for the "ancient stone" effect).
DURASTRIP Extreme Tuneable gives the designer the freedom to choose previously unthinkable shades of light without using complex electronic equipment and create the most diverse and new, pleasant and amazing lighting scenes using just one strip.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Always use with aluminium profiles for heat dissipation.
Usage information
NOTE: 6 channels needed
Dimmable 0-100% Flicker Free
DMX
Analogue and digital domotic control systems
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of colour temperature in the whites + RGBA:
3000K - 6500K + RGB + AMBRA 1600K
Binning
ANSI/SDCM: 3 step.
Connections
IP20: terminals with free wires.
IP65: complete with a 15 cm long IP65/68 M/F cable on 2 sides.
Maximum connection length 5 m.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Power: 115 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Free Wire
IP: 20
Tc: 3000-6500K + RGBA
Ra: >80
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 15 mm
H: 2 mm
Paso de corte
Cutting pitch: 125 mm
LED pitch: 21 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 1250 lm/m
CCT nominal colour temperature: 3000-6500K + RGBA
Colour of the light: 3000-6500+RGBA
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 115 W
Input voltage: 24 Vdc
Dimmable: Yes
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 160 gr
Barcode single item: 8011905950187
Number of pieces multiple pack: 20
Barcode multiple pack: 8011905952020
Minimum order quantity: 1
Minimum packaging: 1 / 20
07UET2423IN - DURASTRIP EXTREME TUNABLE CCT IP20
Typology: 24V Strip LED. Features: This strip adds to the characteristics of the CCT, which varies the white from 3000K to 6500K, and the potential offered by an LED that encloses the Red Green and Blue spectra + a very warm amber colour (wonderful for the "ancient stone" effect). DURASTRIP Extreme Tuneable gives the designer the freedom to choose previously unthinkable shades of light without using complex electronic equipment and create the most diverse and new, pleasant and amazing lighting scenes using just one strip. Installation: Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Always use with aluminium profiles for heat dissipation.: Usage information: NOTE: 6 channels needed Dimmable 0-100% Flicker Free DMX Analogue and digital domotic control systems Packaging: Packaged in 5 meters reels. This product can be customized: consult the catalogue or the sales force for details. Colour of the light: Choice of colour temperature in the whites + RGBA: 3000K - 6500K + RGB + AMBRA 1600K Binning: ANSI/SDCM: 3 step. Connections: IP20: terminals with free wires. IP65: complete with a 15 cm long IP65/68 M/F cable on 2 sides. Maximum connection length 5 m. Strips can be cut to size by following the cutting indications printed on the strips. Characteristic data - Power: 115 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Free Wire; IP: 20; Tc: 3000-6500K + RGBA; Ra: >80; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 15 mm; H: 2 mm; Paso de corte; Cutting pitch: 125 mm; LED pitch: 21 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 1250 lm/m; CCT nominal colour temperature: 3000-6500K + RGBA; Colour of the light: 3000-6500+RGBA; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 115 W; Input voltage: 24 Vdc; Dimmable: Yes; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 160 gr; Barcode single item: 8011905950187; Number of pieces multiple pack: 20; Barcode multiple pack: 8011905952020; Minimum order quantity: 1; Minimum packaging: 1 / 20.
