Typology
24V Strip LED.
Features
Double track LED strip, 600 LEDs, optimization of temperature management, halving of voltage drop along the length.
Low temperature extrusion technology for the silicone sheath: greater resistance to abrasion, easier access to the substrate for welding operations.
Resistance to oxidation and fading due to other light sources; no UV emission.
Package includes mounting accessories.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires.
Maximum connection length 5 m. Max 4A.
For longer connections, connect in series or in parallel, see diagram in Info Tech.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Dimensional characteristics
Cutting pitch
100 mm
LED pitch
8 mm
Lighting and photometric features
Nominal flux per mt
1200 lm/m
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Colour rendering index
>95
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "F"
Operating temperature
-25°C / +35°C

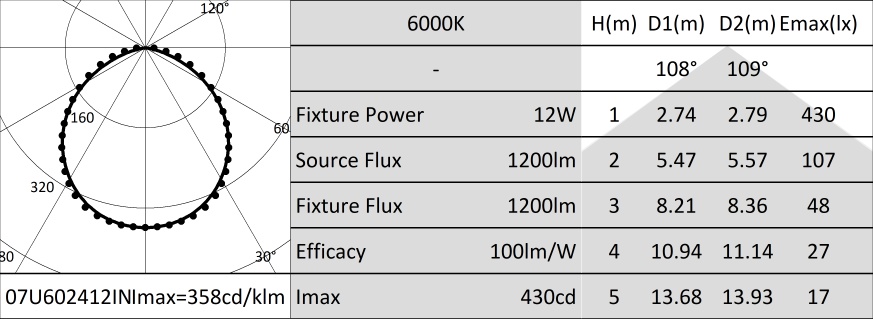

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905848484
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact
07U602412IN - DURASTRIP PRO IP20
Typology
24V Strip LED.
Features
Double track LED strip, 600 LEDs, optimization of temperature management, halving of voltage drop along the length.
Low temperature extrusion technology for the silicone sheath: greater resistance to abrasion, easier access to the substrate for welding operations.
Resistance to oxidation and fading due to other light sources; no UV emission.
Package includes mounting accessories.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires.
Maximum connection length 5 m. Max 4A.
For longer connections, connect in series or in parallel, see diagram in Info Tech.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Power: 60 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Free Wire
IP: 20
Flux: 6000 lm
Tc: 6000 K
Ra: >95
LED Warranty: G5h24
Axis: 390 cd
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 10 mm
H: 2 mm
Paso de corte
Cutting pitch: 100 mm
LED pitch: 8 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 1200 lm/m
Flux: 6000 lm
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Colour rendering index: >95
Lifespan: 60000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 60 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "F"
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 88 gr
Barcode single item: 8011905848484
Number of pieces multiple pack: 20
Minimum order quantity: 20
Minimum packaging: 20 / 20
07U602412IN - DURASTRIP PRO IP20
Typology: 24V Strip LED. Features: Double track LED strip, 600 LEDs, optimization of temperature management, halving of voltage drop along the length. Low temperature extrusion technology for the silicone sheath: greater resistance to abrasion, easier access to the substrate for welding operations. Resistance to oxidation and fading due to other light sources; no UV emission. Package includes mounting accessories. Installation: Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately. Usage information: Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible Packaging: Packaged in 5 meters reels. This product can be customized: consult the catalogue or the sales force for details. Colour of the light: Choice of white colour temperatures. Binning: ANSI/SDCM: 2 step. Connections: IP20: terminals with free wires. Maximum connection length 5 m. Max 4A. For longer connections, connect in series or in parallel, see diagram in Info Tech. Strips can be cut to size by following the cutting indications printed on the strips. Characteristic data - Power: 60 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Free Wire; IP: 20; Flux: 6000 lm; Tc: 6000 K; Ra: >95; LED Warranty: G5h24; Axis: 390 cd; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 10 mm; H: 2 mm; Paso de corte; Cutting pitch: 100 mm; LED pitch: 8 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 1200 lm/m; Flux: 6000 lm; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Colour rendering index: >95; Lifespan: 60000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 60 W; Input voltage: 24 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "F"; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 88 gr; Barcode single item: 8011905848484; Number of pieces multiple pack: 20; Minimum order quantity: 20; Minimum packaging: 20 / 20.
