07U602405XOPE
DURASTRIP PRO EVO IP68
Product available in:
Share
Ask info
Datasheet
Download
The PRO EVO line is characterized by the narrow pitch of the LEDs even on the smaller power 5W/m: a quality product with 140lm/W efficiency.
Excellent colour rendering, Ra92, and a choice of 4 different wattages, from 5W to 22W per metre.
It can be used in any project and provides excellent energy savings in residential or commercial contexts.

Features
White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ.

Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.

Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible

Packaging
Packaged in 5 meters reels.

Connections
Complete with a 15 cm long IP65/68 M/F cable on 2 sides.
For longer connections, connect in series or in parallel, see diagram in Info Tech.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
24 Vdc
Ra 92
50000 h
L70B20
IP68
Connector
-25°C
+35°C
Risk
Group 0
120°
G5
h24
Characteristic data
Power
25 W
Beam
120°
Dimmable
Yes
Input
24 Vdc
Base
Connector
IP
68
Tc
6000 K
Ra
92
LED Warranty
G5h24
RG
RG0
Dimensional characteristics
L
5000 mm
L1
12 mm
H
4 mm
Cutting pitch
62.5 mm
LED pitch
7.8 mm
Lighting and photometric features
Beam opening
120°
Nominal flux per mt
665 lm/m
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Colour rendering index
92
Lifespan
50000 h
LED lifespan
L70B20
Trigger time
<0,2 s
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Rated power
25 W
Input voltage
24 Vdc
Dimmable
Yes
Operating temperature
-25°C / +35°C

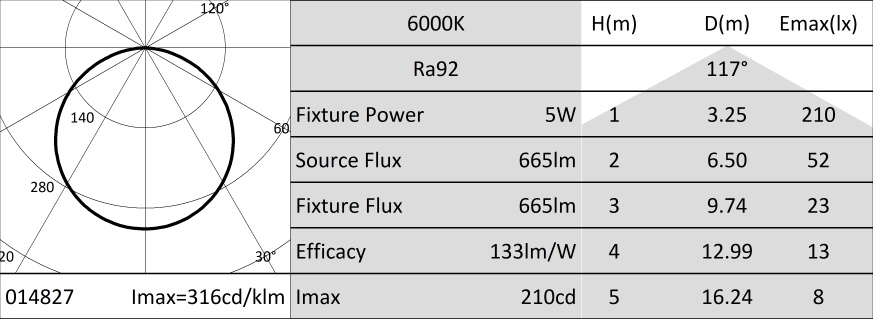

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight
348 gr
Barcode single item
8011905014827
Number of pieces multiple pack
20
Minimum order quantity
20
Minimum packaging
20 / 20
Product sheet
Tender text
Extended
Compact
07U602405XOPE - DURASTRIP PRO EVO IP68

The PRO EVO line is characterized by the narrow pitch of the LEDs even on the smaller power 5W/m: a quality product with 140lm/W efficiency.
Excellent colour rendering, Ra92, and a choice of 4 different wattages, from 5W to 22W per metre.
It can be used in any project and provides excellent energy savings in residential or commercial contexts.

Features
White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ.

Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.

Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible

Packaging
Packaged in 5 meters reels.

Connections
Complete with a 15 cm long IP65/68 M/F cable on 2 sides.
For longer connections, connect in series or in parallel, see diagram in Info Tech.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.

Characteristic data
Power: 25 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Connector
IP: 68
Tc: 6000 K
Ra: 92
LED Warranty: G5h24
RG: RG0

Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 12 mm
H: 4 mm
Paso de corte
Cutting pitch: 62.5 mm
LED pitch: 7.8 mm

Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 665 lm/m
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Colour rendering index: 92
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light

Electrical characteristics
Rated power: 25 W
Input voltage: 24 Vdc
Dimmable: Yes
Operating temperature: -25°C / +35°C

LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.

European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign

Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014

Logistics data
Item net weight: 348 gr
Barcode single item: 8011905014827
Number of pieces multiple pack: 20
Minimum order quantity: 20
Minimum packaging: 20 / 20
07U602405XOPE - DURASTRIP PRO EVO IP68
The PRO EVO line is characterized by the narrow pitch of the LEDs even on the smaller power 5W/m: a quality product with 140lm/W efficiency. Excellent colour rendering, Ra92, and a choice of 4 different wattages, from 5W to 22W per metre. It can be used in any project and provides excellent energy savings in residential or commercial contexts. Features: White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ. Installation: Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately. Usage information: Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible Packaging: Packaged in 5 meters reels. Connections: Complete with a 15 cm long IP65/68 M/F cable on 2 sides. For longer connections, connect in series or in parallel, see diagram in Info Tech. Strips can be cut to size by following the cutting indications printed on the strips. For IP65/IP68 strips, restore the IP protection after cutting. Characteristic data - Power: 25 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Connector; IP: 68; Tc: 6000 K; Ra: 92; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 12 mm; H: 4 mm; Paso de corte; Cutting pitch: 62.5 mm; LED pitch: 7.8 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 665 lm/m; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Colour rendering index: 92; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 25 W; Input voltage: 24 Vdc; Dimmable: Yes; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 348 gr; Barcode single item: 8011905014827; Number of pieces multiple pack: 20; Minimum order quantity: 20; Minimum packaging: 20 / 20.
