07U402414INHE
DURASTRIP HIGH EFFICIENCY IP20
A high efficiency range to meet the needs of prestigious projects.
With an efficiency of 180 lumens/watt, these strips emit from 1000 to 4000 lumens per metre, these strips are perfect for general lighting applications.
The High Efficiency line is characterised by excellent quality, reliability, high colour rendering, excellent white colour homogeneity, durability, long service life and great energy savings!
Features
White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
Connections
IP20: terminals with free wires.
For longer connections, connect in series or parallel, see diagram.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Dimensional characteristics
Cutting pitch
50 mm
LED pitch
6.25 mm
Lighting and photometric features
Nominal flux per mt
2530 lm/m
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

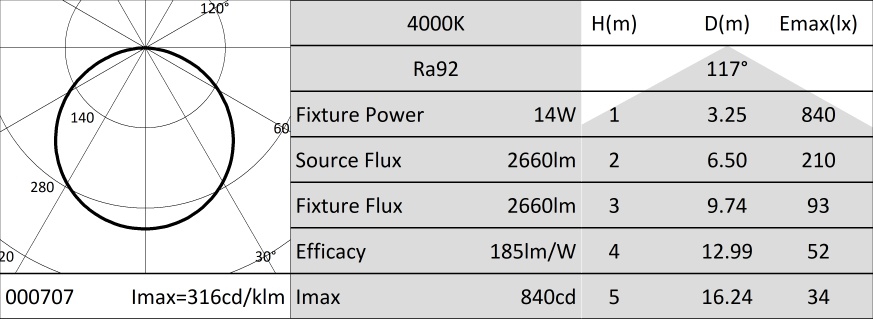

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905000707
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact
07U402414INHE - DURASTRIP HIGH EFFICIENCY IP20
A high efficiency range to meet the needs of prestigious projects.
With an efficiency of 180 lumens/watt, these strips emit from 1000 to 4000 lumens per metre, these strips are perfect for general lighting applications.
The High Efficiency line is characterised by excellent quality, reliability, high colour rendering, excellent white colour homogeneity, durability, long service life and great energy savings!
Features
White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
Connections
IP20: terminals with free wires.
For longer connections, connect in series or parallel, see diagram.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Power: 72 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Free Wire
IP: 20
Tc: 4000 K
Ra: 92
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 10 mm
H: 1 mm
Paso de corte
Cutting pitch: 50 mm
LED pitch: 6.25 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 2530 lm/m
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 92
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 72 W
Input voltage: 24 Vdc
Dimmable: Yes
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 102 gr
Barcode single item: 8011905000707
Number of pieces multiple pack: 20
Minimum order quantity: 1
Minimum packaging: 1 / 20
07U402414INHE - DURASTRIP HIGH EFFICIENCY IP20
A high efficiency range to meet the needs of prestigious projects. With an efficiency of 180 lumens/watt, these strips emit from 1000 to 4000 lumens per metre, these strips are perfect for general lighting applications. The High Efficiency line is characterised by excellent quality, reliability, high colour rendering, excellent white colour homogeneity, durability, long service life and great energy savings! Features: White shades: 3000K and 4000K available, other colour temperatures on request and with MOQ. Installation: Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately. Usage information: Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible Packaging: Packaged in 5 meters reels. Connections: IP20: terminals with free wires. For longer connections, connect in series or parallel, see diagram. Strips can be cut to size by following the cutting indications printed on the strips. Characteristic data - Power: 72 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Free Wire; IP: 20; Tc: 4000 K; Ra: 92; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 10 mm; H: 1 mm; Paso de corte; Cutting pitch: 50 mm; LED pitch: 6.25 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 2530 lm/m; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 92; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 72 W; Input voltage: 24 Vdc; Dimmable: Yes; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 102 gr; Barcode single item: 8011905000707; Number of pieces multiple pack: 20; Minimum order quantity: 1; Minimum packaging: 1 / 20.
