07U304806INL5000
NewDURASTRIP EXTRALONG 48V IP20
Typology
48V Strip LED.
Features
EXTRALONG 48V produced in 50 metre reels allow for installations of great lengths, up to a max of 50m also with chain segments connection, without extra power supplies.
With two strips (not connected) and two drivers at opposite ends, light lines of up to 100 metres can be achieved!
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Packaging
Packaged in 50 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires.
Maximum connection length 50 m.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Dimensional characteristics
Cutting pitch
166.67 mm
LED pitch
11.9 mm
Lighting and photometric features
Nominal flux per mt
520 lm/m
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
>90
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "F"
Operating temperature
-25°C / +35°C

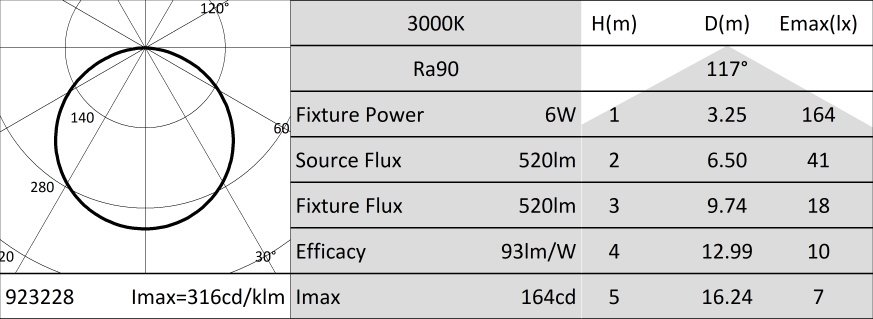

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905923228
Product sheet
Tender text
Extended
Compact
07U304806INL5000 - DURASTRIP EXTRALONG 48V IP20
Typology
48V Strip LED.
Features
EXTRALONG 48V produced in 50 metre reels allow for installations of great lengths, up to a max of 50m also with chain segments connection, without extra power supplies.
With two strips (not connected) and two drivers at opposite ends, light lines of up to 100 metres can be achieved!
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Packaging
Packaged in 50 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires.
Maximum connection length 50 m.
Strips can be cut to size by following the cutting indications printed on the strips.
Characteristic data
Power: 225 W
Beam: 120°
Dimmable: Yes
Input: 48 Vdc
Base: Free Wire
IP: 20
Flux: 20800 lm
Tc: 3000 K
Ra: >90
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 50000 mm
L1: 12 mm
H: 1.7 mm
Paso de corte
Cutting pitch: 166.67 mm
LED pitch: 11.9 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 520 lm/m
Flux: 20800 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: >90
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 225 W
Input voltage: 48 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "F"
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 408 gr
Barcode single item: 8011905923228
Minimum order quantity: 1
Minimum packaging: 1 / 1
07U304806INL5000 - DURASTRIP EXTRALONG 48V IP20
Typology: 48V Strip LED. Features: EXTRALONG 48V produced in 50 metre reels allow for installations of great lengths, up to a max of 50m also with chain segments connection, without extra power supplies. With two strips (not connected) and two drivers at opposite ends, light lines of up to 100 metres can be achieved! Installation: Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Packaging: Packaged in 50 meters reels. This product can be customized: consult the catalogue or the sales force for details. Colour of the light: Choice of white colour temperatures. Binning: ANSI/SDCM: 2 step. Connections: IP20: terminals with free wires. Maximum connection length 50 m. Strips can be cut to size by following the cutting indications printed on the strips. Characteristic data - Power: 225 W; Beam: 120°; Dimmable: Yes; Input: 48 Vdc; Base: Free Wire; IP: 20; Flux: 20800 lm; Tc: 3000 K; Ra: >90; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 50000 mm; L1: 12 mm; H: 1.7 mm; Paso de corte; Cutting pitch: 166.67 mm; LED pitch: 11.9 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 520 lm/m; Flux: 20800 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: >90; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 225 W; Input voltage: 48 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "F"; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 408 gr; Barcode single item: 8011905923228; Minimum order quantity: 1; Minimum packaging: 1 / 1.
