Typology

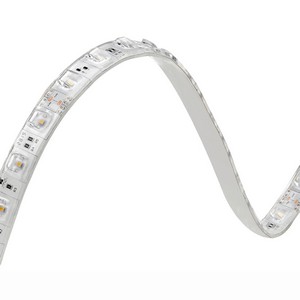

24V Strip LED.
Features
A minimal and unobtrusive light element providing a wall wash effect.
By utilising an asymmetric reflector, the light is directed across the vertical surface, the efficiency of the LED's power is maximised to provide a uniformed wash effect of light.
The product is sealed to guarantee a high degree of Ingress Protection (IP67).
Installation
Installation requires metal clips, see separate accessories code.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Accessories
2 PIN connectors included in kit code KT07UXOL allow strips to be linked up to a maximum run of 5 meters.
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Notes
Strips can be cut to size by following the cutting indications printed on the strips.
For IP67 strips, restore the IP protection after cutting.
Do not lit under the sun for more than 30 minutes.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.
Connections
IP67: complete with a 15 cm long M/F cable on 2 sides.
Characteristic data
Dimensional characteristics

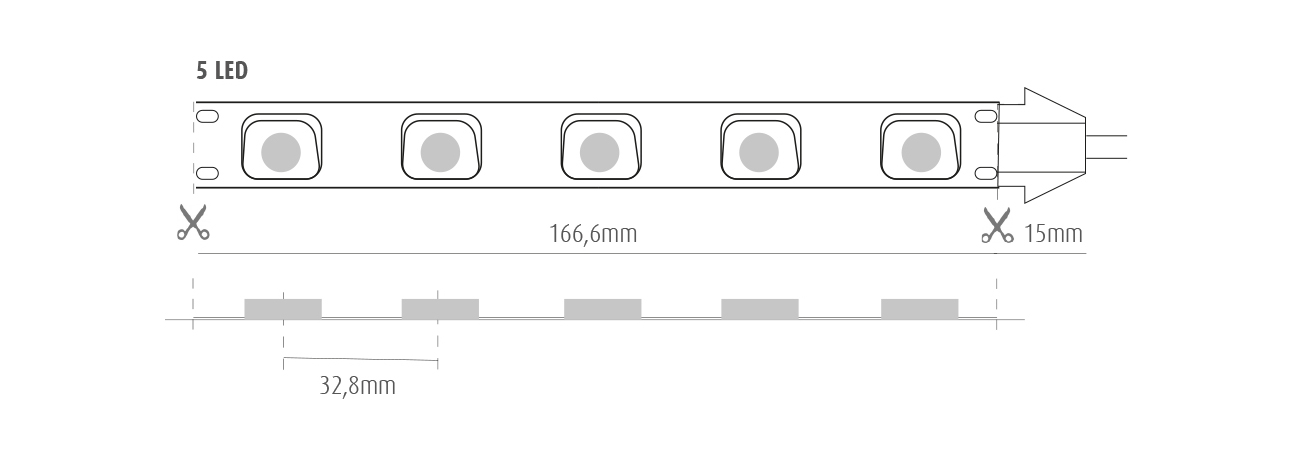

Cutting pitch
166.6 mm
LED pitch
32.8 mm
Lighting and photometric features
Beam opening
100°x70° (40°+30°)
Nominal flux per mt
1400 lm/m
CCT nominal colour temperature
2700 K
Colour of the light
Warm light
Colour rendering index
>90
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "G"
Operating temperature
-25°C / +35°C

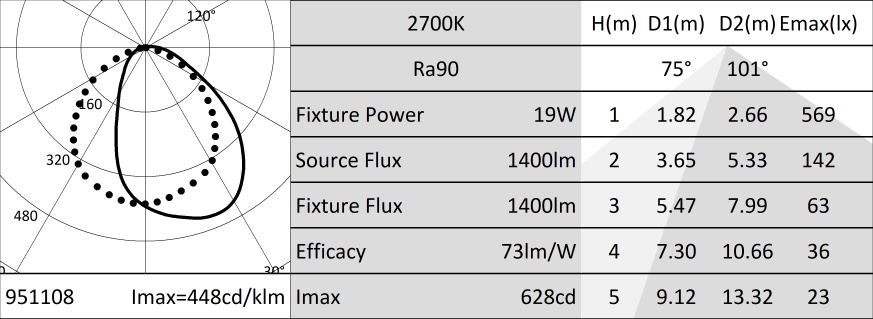

Photometry
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905966904
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact
07U272419XWA - DURASTRIP WALL WASHER
Typology
24V Strip LED.
Features
A minimal and unobtrusive light element providing a wall wash effect.
By utilising an asymmetric reflector, the light is directed across the vertical surface, the efficiency of the LED's power is maximised to provide a uniformed wash effect of light.
The product is sealed to guarantee a high degree of Ingress Protection (IP67).
Installation
Installation requires metal clips, see separate accessories code.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Accessories
2 PIN connectors included in kit code KT07UXOL allow strips to be linked up to a maximum run of 5 meters.
Packaging
Packaged in 5 meters reels.
This product can be customized: consult the catalogue or the sales force for details.
Notes
Strips can be cut to size by following the cutting indications printed on the strips.
For IP67 strips, restore the IP protection after cutting.
Do not lit under the sun for more than 30 minutes.
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.
Connections
IP67: complete with a 15 cm long M/F cable on 2 sides.
Characteristic data
Power: 96 W
Beam: 100°x70° (40°+30°)
Dimmable: Yes
Input: 24 Vdc
IP: 67
Tc: 2700 K
Ra: >90
LED Warranty: G3
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 23 mm
H: 10.5 mm
Paso de corte
Cutting pitch: 166.6 mm
LED pitch: 32.8 mm
Lighting and photometric features
Beam opening: 100°x70° (40°+30°)
Nominal flux per mt: 1400 lm/m
CCT nominal colour temperature: 2700 K
Colour of the light: Warm light
Colour rendering index: >90
Lifespan: 30000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 96 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "G"
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 990 gr
Barcode single item: 8011905966904
Number of pieces multiple pack: 20
Minimum order quantity: 20
Minimum packaging: 20 / 20
07U272419XWA - DURASTRIP WALL WASHER
Typology: 24V Strip LED. Features: A minimal and unobtrusive light element providing a wall wash effect. By utilising an asymmetric reflector, the light is directed across the vertical surface, the efficiency of the LED's power is maximised to provide a uniformed wash effect of light. The product is sealed to guarantee a high degree of Ingress Protection (IP67). Installation: Installation requires metal clips, see separate accessories code. Usage information: Dimmable 0-100% DALI - DMX Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible Power supply: Max current for single power supply: 4A. Accessories: 2 PIN connectors included in kit code KT07UXOL allow strips to be linked up to a maximum run of 5 meters. Packaging: Packaged in 5 meters reels. This product can be customized: consult the catalogue or the sales force for details. Notes: Strips can be cut to size by following the cutting indications printed on the strips. For IP67 strips, restore the IP protection after cutting. Do not lit under the sun for more than 30 minutes. Colour of the light: Choice of white colour temperatures. Binning: ANSI/SDCM: 3 step. Connections: IP67: complete with a 15 cm long M/F cable on 2 sides. Characteristic data - Power: 96 W; Beam: 100°x70° (40°+30°); Dimmable: Yes; Input: 24 Vdc; IP: 67; Tc: 2700 K; Ra: >90; LED Warranty: G3; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 23 mm; H: 10.5 mm; Paso de corte; Cutting pitch: 166.6 mm; LED pitch: 32.8 mm. Lighting and photometric features - Beam opening: 100°x70° (40°+30°); Nominal flux per mt: 1400 lm/m; CCT nominal colour temperature: 2700 K; Colour of the light: Warm light; Colour rendering index: >90; Lifespan: 30000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 96 W; Input voltage: 24 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "G"; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 990 gr; Barcode single item: 8011905966904; Number of pieces multiple pack: 20; Minimum order quantity: 20; Minimum packaging: 20 / 20.
