Typology
LED strip Chip On Board.
Features
The construction structure of COB strips allows the LEDs to be applied on the substrate in a continuous manner, optimizing all the space: the result is a continuous line of light, emphasized by the phosphate cover.
The type of LEDs used emit less heat than the CHIPs normally used for strips, allowing very high efficiency and strong brightness even at low wattages.
Installation
Complete with double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Characteristic data
Dimensional characteristics
Lighting and photometric features
Nominal flux per mt
1030 lm/m
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "E"
Operating temperature
-25°C / +35°C
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905016333
Product sheet
Tender text
Extended
Compact
03U602410INCB - DURASTRIP COB
Typology
LED strip Chip On Board.
Features
The construction structure of COB strips allows the LEDs to be applied on the substrate in a continuous manner, optimizing all the space: the result is a continuous line of light, emphasized by the phosphate cover.
The type of LEDs used emit less heat than the CHIPs normally used for strips, allowing very high efficiency and strong brightness even at low wattages.
Installation
Complete with double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Characteristic data
Power: 50 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Free Wire
IP: 20
Tc: 6000 K
Ra: 90
LED Warranty: G3
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 8 mm
H: 1.7 mm
Paso de corte
Cutting pitch: 50 mm

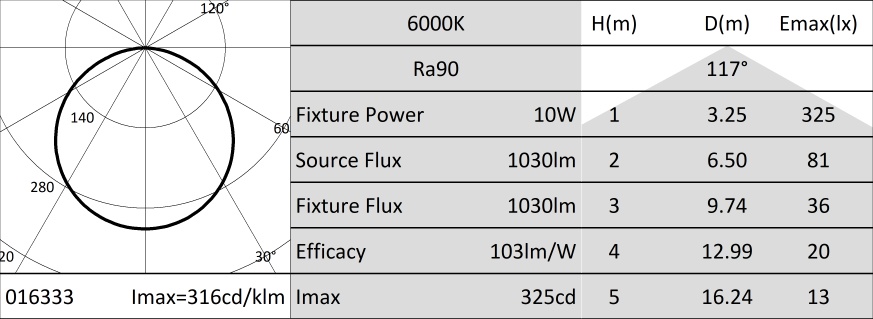

Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 1030 lm/m
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Colour rendering index: 90
Lifespan: 25000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 50 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "E"
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 77 gr
Barcode single item: 8011905016333
Minimum order quantity: 1
Minimum packaging: 1 / 1
03U602410INCB - DURASTRIP COB
Typology: LED strip Chip On Board. Features: The construction structure of COB strips allows the LEDs to be applied on the substrate in a continuous manner, optimizing all the space: the result is a continuous line of light, emphasized by the phosphate cover. The type of LEDs used emit less heat than the CHIPs normally used for strips, allowing very high efficiency and strong brightness even at low wattages. Installation: Complete with double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Usage information: Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible Characteristic data - Power: 50 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Free Wire; IP: 20; Tc: 6000 K; Ra: 90; LED Warranty: G3; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 8 mm; H: 1.7 mm; Paso de corte; Cutting pitch: 50 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 1030 lm/m; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Colour rendering index: 90; Lifespan: 25000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 50 W; Input voltage: 24 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "E"; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 77 gr; Barcode single item: 8011905016333; Minimum order quantity: 1; Minimum packaging: 1 / 1.
