01U602414EX-TB
DURASTRIP SELECT 240 IP65
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Packaging
Packaged in 5 meters reels.
LED
LED 2835
140 LED/m
Connections
IP20: terminals with free wires.
IP65: complete with a 15 cm long IP65 M/F cable on 2 sides.
Maximum connection length 5 m. Max 4A.
For longer connections, connect in series or parallel.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65 strips, restore the IP protection after cutting.
Characteristic data
Dimensional characteristics
Lighting and photometric features
Nominal flux per mt
1400 lm/m
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "F"
Operating temperature
-25°C / +35°C

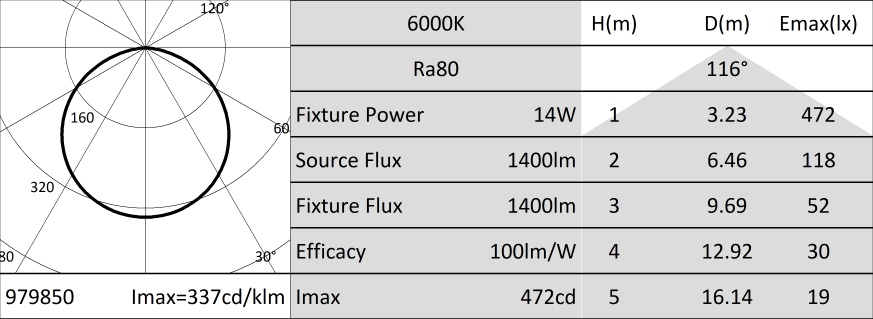

Photometry
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905979850
Number of pieces multiple pack
10
Product sheet
Tender text
Extended
Compact
01U602414EX-TB - DURASTRIP SELECT 240 IP65
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Packaging
Packaged in 5 meters reels.
LED
LED 2835
140 LED/m
Connections
IP20: terminals with free wires.
IP65: complete with a 15 cm long IP65 M/F cable on 2 sides.
Maximum connection length 5 m. Max 4A.
For longer connections, connect in series or parallel.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65 strips, restore the IP protection after cutting.
Characteristic data
Power: 70 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Connector
IP: 65
Tc: 6000 K
Ra: 90
LED Warranty: G2
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 12 mm
H: 4 mm
Paso de corte
Cutting pitch: 25 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 1400 lm/m
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Colour rendering index: 90
Lifespan: 30000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 70 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "F"
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 289 gr
Barcode single item: 8011905979850
Number of pieces multiple pack: 10
Minimum order quantity: 1
Minimum packaging: 1 / 10
01U602414EX-TB - DURASTRIP SELECT 240 IP65
Installation: Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately. Packaging: Packaged in 5 meters reels. LED: LED 2835 140 LED/m Connections: IP20: terminals with free wires. IP65: complete with a 15 cm long IP65 M/F cable on 2 sides. Maximum connection length 5 m. Max 4A. For longer connections, connect in series or parallel. Strips can be cut to size by following the cutting indications printed on the strips. For IP65 strips, restore the IP protection after cutting. Characteristic data - Power: 70 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Connector; IP: 65; Tc: 6000 K; Ra: 90; LED Warranty: G2; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 12 mm; H: 4 mm; Paso de corte; Cutting pitch: 25 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 1400 lm/m; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Colour rendering index: 90; Lifespan: 30000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 70 W; Input voltage: 24 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "F"; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 289 gr; Barcode single item: 8011905979850; Number of pieces multiple pack: 10; Minimum order quantity: 1; Minimum packaging: 1 / 10.
