01947TLD
DECO LED BIPIN G4 BASIC TOWER
Product available in:
Share
Ask info
Datasheet
Download
Typology
G4 working at 12V AC/DC.

Features
Same applications as halogen G4 bulbs, available with side or vertical pins for OEM lamps.
Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers; very low heat emission.

Material
Item code 01943SIL has a silicone sleeve.

Usage information
Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs and with constant current drivers.
Do not use these items with electronic transformers for halogen lamps.

Notes
Do not use with dimmer.
12 Vdc
Ra 80
30000 h
L70B50
IP20
G4
-25°C
+35°C
270°
G2
Characteristic data
Power
3 W
Beam
270°
Dimmable
No
Input
12 Vdc
Base
G4
IP
20
Flux
220 lm
PF
0,80
Tc
2800 K
Ra
80
LED Warranty
G2

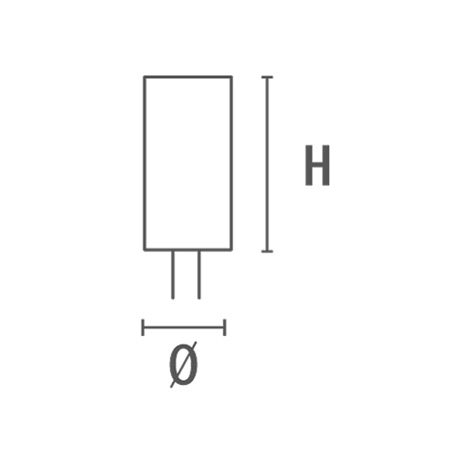

Dimensional characteristics
ø
22 mm
H
46 mm
Lighting and photometric features
Beam opening
270°
Flux
220 lm
CCT nominal colour temperature
2800 K
Colour of the light
Warm light
Colour rendering index
80
Lifespan
30000 h
LED lifespan
L70B50
Trigger time
<0,2 s
Heating time up to 60% of full efficiency
Instant Full Light
Mercury
0 mg
Electrical characteristics
Rated power
3 W
Input voltage
12 Vdc
Dimmable
No
Power factor (PF)
0,80
Weighted energy consumption
3 kWh/1000h
Number of cycles
100000
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
22
Operating position
360°
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014
Logistics data
Item net weight
16 gr
Barcode single item
8011905834173
Number of pieces multiple pack
10
Barcode multiple pack
8011905779450
Product sheet
Tender text
Extended
Compact
01947TLD - DECO LED BIPIN G4 BASIC TOWER

Typology
G4 working at 12V AC/DC.

Features
Same applications as halogen G4 bulbs, available with side or vertical pins for OEM lamps.
Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers; very low heat emission.

Material
Item code 01943SIL has a silicone sleeve.

Usage information
Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs and with constant current drivers.
Do not use these items with electronic transformers for halogen lamps.

Notes
Do not use with dimmer.

Characteristic data
Power: 3 W
Beam: 270°
Dimmable: No
Input: 12 Vdc
Base: G4
IP: 20
Flux: 220 lm
PF: 0,80
Tc: 2800 K
Ra: 80
LED Warranty: G2

Dimensional characteristics
Dimensiones
ø: 22 mm
H: 46 mm

Lighting and photometric features
Beam opening: 270°
Flux: 220 lm
CCT nominal colour temperature: 2800 K
Colour of the light: Warm light
Colour rendering index: 80
Lifespan: 30000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg

Electrical characteristics
Rated power: 3 W
Input voltage: 12 Vdc
Dimmable: No
Power factor (PF): 0,80
Weighted energy consumption: 3 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 22
Operating position: 360°

LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.

European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign

Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014

Logistics data
Item net weight: 16 gr
Barcode single item: 8011905834173
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905779450
01947TLD - DECO LED BIPIN G4 BASIC TOWER
Typology: G4 working at 12V AC/DC. Features: Same applications as halogen G4 bulbs, available with side or vertical pins for OEM lamps. Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers; very low heat emission. Material: Item code 01943SIL has a silicone sleeve. Usage information: Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs and with constant current drivers. Do not use these items with electronic transformers for halogen lamps. Notes: Do not use with dimmer. Characteristic data - Power: 3 W; Beam: 270°; Dimmable: No; Input: 12 Vdc; Base: G4; IP: 20; Flux: 220 lm; PF: 0,80; Tc: 2800 K; Ra: 80; LED Warranty: G2. Dimensional characteristics - Dimensiones; ø: 22 mm; H: 46 mm. Lighting and photometric features - Beam opening: 270°; Flux: 220 lm; CCT nominal colour temperature: 2800 K; Colour of the light: Warm light; Colour rendering index: 80; Lifespan: 30000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 3 W; Input voltage: 12 Vdc; Dimmable: No; Power factor (PF): 0,80; Weighted energy consumption: 3 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 22; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 62838:2016 (+EC:2018); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI 34-141:2014. Logistics data - Item net weight: 16 gr; Barcode single item: 8011905834173; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905779450.
