01469LL
Dichroic MR16 WHITE LIGHT 4200K - 5000h
Typology
Low voltage halogen lamps.
Features
Excellent colour rendering, low cost, wide diffusion and easy to use.
In addition to energy classes that reflect the limitations of the technology used that is now totally replaceable by more efficient LED models.
Lamp not for sale on the European market.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4200 K
Colour of the light
Natural light
Colour rendering index
100
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
53 kWh/1000h
Operating temperature
-15°C / +35°C
Other Infotech
Standards and Directives
2009/125/EC * Ecodesign
2012/19/EU * RAEE
1194/2012 * Regulation for Ecodesign
2014/30/EU * EMC
2015/1428 * Regulation for Ecodesign
2010/30/EU * Energy Labelling
CEI EN 55015:2014 (+A1:2016)
874/2012 * Regulation for Energy Labelling
C
2011/65/EU * RoHS
Logistics data
Barcode single item
8011905815363
Number of pieces multiple pack
20
Barcode multiple pack
8011905759452
Product sheet
Tender text
Extended
Compact
01469LL - Dichroic MR16 WHITE LIGHT 4200K - 5000h
To be discontinued in compliance with European Directives.
Characteristic data
Power: 50 W
Beam: 38°
Dimmable: Yes
Input: 12 Vdc
Base: GU5,3
IP: 20
Flux: 354 lm
Tc: 4200 K
Ra: 100
Axis: 1500 cd

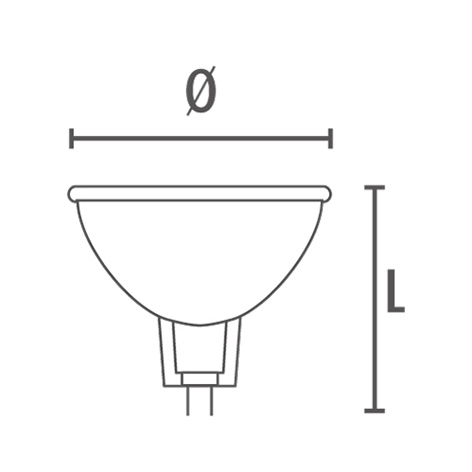

Dimensional characteristics
Dimensiones
ø: 51 mm
H: 45 mm
Lighting and photometric features
Beam opening: 38°
Flux: 354 lm
CCT nominal colour temperature: 4200 K
Colour of the light: Natural light
Colour rendering index: 100
Lifespan: 5000 h
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 50 W
Input voltage: 12 Vdc
Dimmable: Yes
Input current: 4.16 A
Weighted energy consumption: 53 kWh/1000h
Number of cycles: 25000
Operating temperature: -15°C / +35°C
Operating position: 360°
Standards and Directives
2009/125/EC * Ecodesign
1194/2012 * Regulation for Ecodesign
2015/1428 * Regulation for Ecodesign
2010/30/EU * Energy Labelling
874/2012 * Regulation for Energy Labelling
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
CEI EN 55015:2014 (+A1:2016)
C
Logistics data
Item net weight: 30 gr
Barcode single item: 8011905815363
Number of pieces multiple pack: 20
Barcode multiple pack: 8011905759452
Other Infotech
Reflector: Yes
01469LL - Dichroic MR16 WHITE LIGHT 4200K - 5000h
To be discontinued in compliance with European Directives. Characteristic data - Power: 50 W; Beam: 38°; Dimmable: Yes; Input: 12 Vdc; Base: GU5,3; IP: 20; Flux: 354 lm; Tc: 4200 K; Ra: 100; Axis: 1500 cd. Dimensional characteristics - Dimensiones; ø: 51 mm; H: 45 mm. Lighting and photometric features - Beam opening: 38°; Flux: 354 lm; CCT nominal colour temperature: 4200 K; Colour of the light: Natural light; Colour rendering index: 100; Lifespan: 5000 h; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 50 W; Input voltage: 12 Vdc; Dimmable: Yes; Input current: 4.16 A; Weighted energy consumption: 53 kWh/1000h; Number of cycles: 25000; Operating temperature: -15°C / +35°C; Operating position: 360°. Standards and Directives - 2009/125/EC * Ecodesign; 1194/2012 * Regulation for Ecodesign; 2015/1428 * Regulation for Ecodesign; 2010/30/EU * Energy Labelling; 874/2012 * Regulation for Energy Labelling; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; CEI EN 55015:2014 (+A1:2016); C. Logistics data - Item net weight: 30 gr; Barcode single item: 8011905815363; Number of pieces multiple pack: 20; Barcode multiple pack: 8011905759452. Other Infotech - Reflector: Yes.
